48-core ODF optical fiber distribution frame

ODF fibre distribution frame：

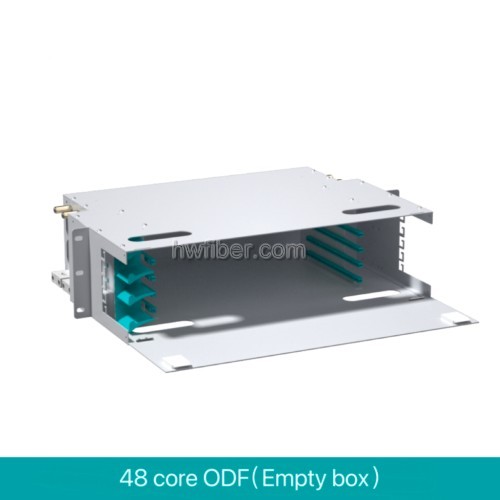

Empty box  SC / UPC full configuration  FC / UPC full configuration  LC / APC full configuration  SC / APC full configuration  FC / APC full configuration

ODF fiber panel, also known as ODF (Optical Distribution Frame), is a fiber wiring equipment designed for the fiber communication room. The following is a detailed description of the ODF optical fiber distribution panel:

Functions and Features

1. Optical cable fixation and protection function: ODF can fix and protect the optical cable to ensure the stability and safety of the optical cable.

2. Optical cable terminal function: ODF provides the terminal function of optical cable to facilitate the connection between optical cable and equipment.

3. Line adjustment function: ODF supports flexible line adjustment function to facilitate the adjustment and expansion of optical cable network.

4. Protection function: ODF can protect the cable fiber core and tail fiber, and ensure the stable transmission of optical signal.

5. Flexible configuration: ODF configuration is flexible, which can be separately assembled into optical fiber distribution frame, or can be installed in a cabinet / frame with digital distribution unit and audio distribution unit to form a comprehensive distribution frame.

6. Easy maintenance and management: ODF is easy to install and use, easy to maintain and manage, and can improve work efficiency and management level.

7. Rack design: ODF adopts rack design, which can be installed into the distribution frame cabinet or wall mounted to adapt to different installation environment.

Composition and structure

1. The frame, subframe, plate, fusion box, the protective attachment, optical fiber adapter and tail fiber form the ODF optical fiber distribution frame.

2. The frame adopts thickened galvanized passivation treatment of cold-rolled steel plate and surface spraying process, and the structural parts are made of high-quality materials, which are strong and durable.

3. The optical fiber distribution plate is made of plastic material mixed with flame retardant material, light and flexible, and strong and durable.

4. The large diameter coiled coil design keeps the curvature radius of tail fiber and jumping fiber above 40mm to ensure the stable transmission of optical signal.

5. The wiring box adopts drawer structure, which can be pulled out during operation and put back after completion for convenient maintenance and management.
