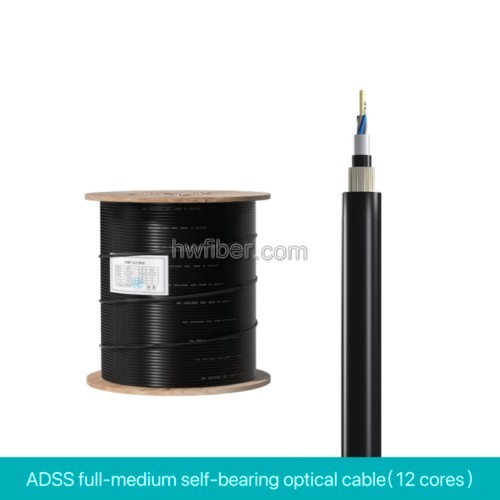

ADSS full-medium self-bearing optical cable

Optical cable meter number:500M 1000M 1500M 2000M 3000M

Number of cable cores:4/6/8/12/24/48

ADSS (all-media self-supporting optical cable) is a self-supporting overhead optical cable, specially designed for overhead installation and deployment, suitable for a variety of outdoor applications.

Characteristics

1. No metal, tension resistance, self-bearing, high insulation, no induction, thin diameter, light, easy construction and economy, etc.

2. The optical fiber is tied around the central reinforcement, which is made of insulation, waterproof, reinforcement, sheath and other protection measures.

3. Full medium, no metal, no conductive; small cable diameter, large tension ratio; low line expansion coefficient, applicable temperature width.

4. Due to its unique structure, good insulation and high temperature resistance, and many advantages of high tensile strength, it provides a fast and economical transmission channel in the power communication system.

5. ADSS optical cable can be installed in one time, without the use of conductive metal elements or supports or sling, so it becomes an economical and simple way to build optical fiber network.

6. It is suitable for installation in the distribution and transmission environment, no new tower or occupation, fast construction speed, short construction period, can be erected optical cable, does not affect the normal operation of the transmission line.

7. It is independent of power lines, does not affect the normal maintenance of transmission lines and optical cables, and has strong impact resistance and good bulletproof function.
