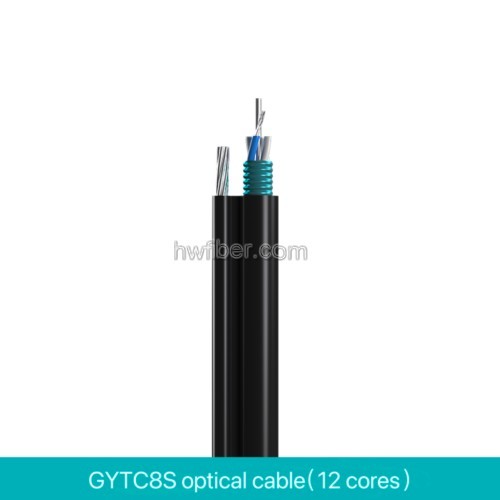

GYTC8S Optical cable

Number of cable cores: 4/6/8/12/24/48/72//96/144/288 cores

Optical cable meters:500M 1000M 1500M 2000M 3000M

GYTC8S Optical cable is a kind of self-supporting outdoor optical cable, mainly used for overhead, pipeline and buried applications. The design of this optical cable takes into account various environmental factors to ensure stable operation under all kinds of complex conditions.

Structure and materials

1. Center strengthening member: high strength steel wire is usually used to provide the tensile strength of the cable to ensure that it is not easy to break by external forces.

2. Optical fiber unit: composed of multiple optical fiber and loose sleeve, optical fiber is used to transmit optical signal, loose sleeve acts to protect and support the optical fiber.

3. Water blocking material: the fiber is usually filled with water blocking material to prevent water from entering the cable, affecting its performance and service life.

4. Outer sheath: usually using polyethylene (PE) material, to provide the outer protective layer of optical cable, with excellent corrosion resistance and aging resistance performance.

5. Ribled steel strips: corrugated steel bands around the cable provide additional compression and impact protection.

Main features

1. High strength: due to the use of steel wire reinforcement, GYTC8S optical cable has a very high tensile strength, can withstand a large external stress.

2. Waterproof performance: optimized water resistance material and structural design, to ensure that the optical cable has a good waterproof performance, even in a wet environment can also maintain a stable performance.

3. Corrosion resistance: the outer sheath material has good corrosion resistance, can resist the erosion of various chemical and environmental substances.

4. Mechanical properties: Due to the use of corrugated steel strip and special structural design, GYTC8S optical cable has excellent compression and impact resistance ability.

5. Small diameter, lightweight: compared with other types of optical cable, GYTC8S optical cable has a smaller diameter and lightweight design, easy to installation and maintenance.

6. Low attenuation: the optical cable adopts low attenuation optical fiber to ensure the quality of signal transmission.

Application scenarios

1. Telecommunications network: suitable for long-distance optical fiber transmission system, such as backbone network, metropolitan area network, etc.

2. Power industry: it can be used in the optical fiber communication system in power lines to realize the intelligent management and monitoring of power lines.

3. Broadcast TV: as a signal transmission medium, used for the transmission of TV signal and broadcast signal.

4. Iot of Things and Sensor Network: Support data transmission of various IoT devices and sensor nodes.

5. Military and aviation applications: Due to its resistance to harsh environment, it is also suitable for optical fiber communication systems in the military and aviation fields.

Installation and maintenance

1. The lightweight and compact design of the GYTC8S optical cable makes it easy to install and maintain.

2. Suitable for overhead, pipeline and buried and other laying methods.

3. Care should be taken to avoid excessive bending or distortion of the optical cable during installation to reduce the risk of signal attenuation and mechanical damage.

4. In order to ensure the long-term performance stability, it is recommended to maintain and check the optical cable regularly.
