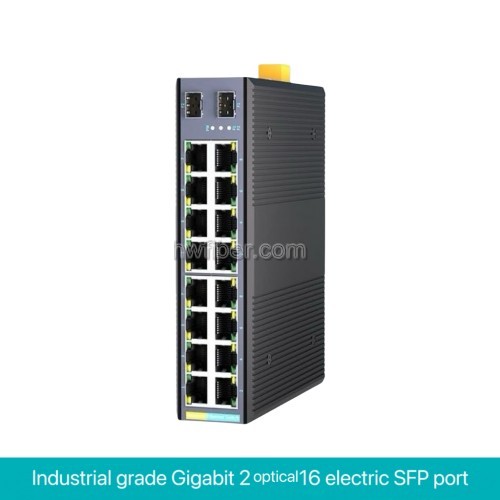

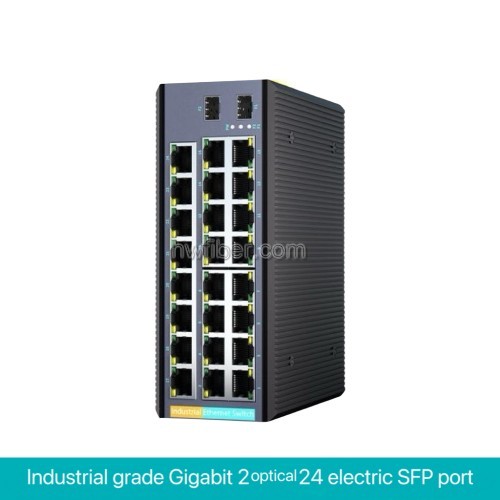

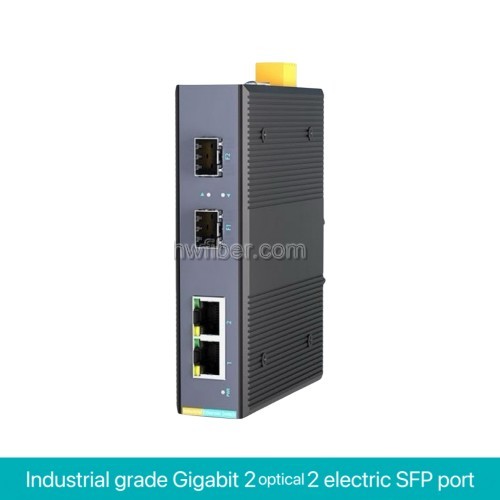

Industrial grade gigabit fiber optic switch

Interface model：2/4/8-optical 2/4/8/16/24-electric 5/8/16/24-port SC/SFP

Transmission rate：1000Mbps

Type：Industrial grade

Product overview

Non-network industrial Ethernet switch supports gigabit optical fiber interface and Gigabit Ethernet port, plug and play; this series switch adopts low power and fanless design to ensure no noise interference, and supports-40 C~75 C work to ensure stable work in harsh industrial environment, and provides fast and stable network terminal access network for factory automation, intelligent transportation and video surveillance.

Product features

Industrial protection design, adapt to all variety of harsh environment

Using high-strength IP40 protective aluminum profile shell, industrial-grade EMC design has high and low temperature resistance, vibration resistance, corrosion resistance, anti-electromagnetic interference and other characteristics.

Double redundant power input, multiple protection, long time work more stable

Industrial dual power supply input, main backup power supply design, can be supplied at the same time or separate power supply, to ensure the uninterrupted work of the equipment.

Power supply voltage input range is super wide, POE equipment DC INPUT: 48V-57V, non-POE use DC INPUT: 12-52V.

Industrial protection design, adapt to all variety of harsh environment

Using high-strength IP40 protective aluminum profile shell, industrial-grade EMC design has high and low temperature resistance, vibration resistance, corrosion resistance, anti-electromagnetic interference and other characteristics.

6KV port lightning protection

The imported lightning protection device is used to effectively inhibit the lightning current from the network cable and power supply, in the harsh weather environment, to ensure the network high reliability, high stability, high speed transmission.

Industrial grade devices

PCB board adopts chemical nickel gold board, with high corrosion resistance, oxidation resistance and excellent electrical performance. Select high specification and long life Japanese capacitors, greatly improve the service life of the product.

High-redundancy system circuit design, to avoid the external environment mutations affecting the normal operation of the equipment.
