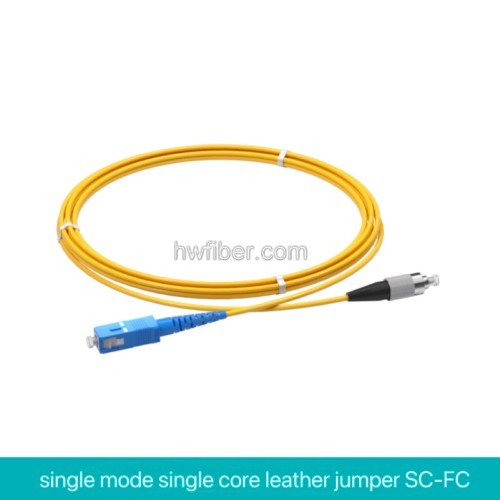

Single-mode single-core optical fiber optic patch cord

Meter number: 1 m 2 m 5 m 10 m 15 m 20 m 25 m 30 m 50 m(support customization)

Joint selection: SC-SC/SC-FC/SC-LC/SC-ST/FC-FC/FC-LC/FC-ST/LC-LC/LC-ST/ST-ST

Single-mode single-core fiber jumper is a special fiber jumper, whose core diameter is only 9 μ m, which is much smaller than the core diameter of multi-mode fiber jumper. Due to the characteristics of a single optical propagation path, the light can only be transmitted along the axis core of the optical fiber, so the dispersion and light energy waste are completely avoided.

Features

1. Lower decay can be achieved, allowing the signal to travel faster and farther.

2. It has the characteristics of low insertion loss and high echo loss.

3. With the advantages of strong environmental adaptability, it can maintain stable performance in different environments.

4. Support for high data transmission rate, which can meet the requirements of high-speed network transmission.

5. Network connections used for long distance transmission and high bandwidth requirements.

 The connector type for a single-cell fiber jumper can be a single or duplex connector type. Among them, a single-mode fiber jumper is composed of a single stream of glass or plastic fiber, usually used in a network connection to an optical transmitting device or receiving device. The duplex single-mode fiber jumper is composed of two strands of glass or plastic fiber, which is regarded as a zipper cable structure for full-duplex communication between the receiving and transmitting equipment.

In addition, according to different requirements, the type of fiber jumper can also include OS1 single mode and OS2 single mode. OS1 has a tight sleeve structure for indoor applications with a maximum distance of 10km. The OS2 usually has a loose sleeve design for outdoor applications with a maximum distance of up to 200km.
