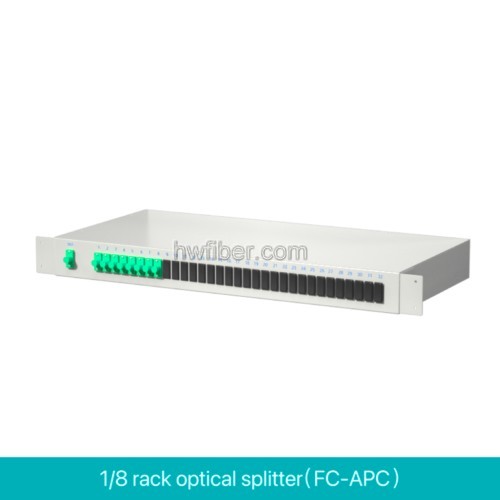

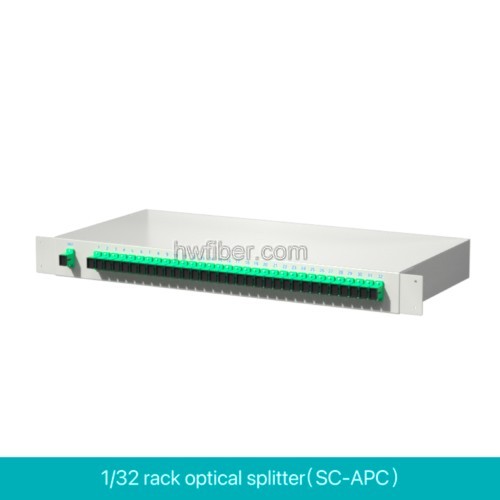

Rack optical splitter(APC)

Rack optical splitter:1/2SC 1/4SC 1/8SC 1/16SC 1/32SC 1/64SC 1/2FC 1/4FC 1/8FC 1/16FC 1/32FC 1/64FC

A rack optical splitter is a large optic splitter, usually mounted on a standard rack, with multiple downlink and uplink ports. It is mainly used for dividing one input optical signal into a plurality of output optical signals so that multiple users or devices can receive signals simultaneously.

Rack optical splitters are usually manufactured using PLC (Planar Lightwave Circuit) or FBT (Fused Biconical Taper) technology. PLC technology is based on optical integration technology, using the semiconductor process to make optical waveguide branch device, the split function is completed on the chip. FBT technology bundles more than two optical fibers together, and then melts and stretches on the drawing machine. During the stretching process, each optical fiber coupling spectral ratio is monitored. After the spectral ratio reaches the requirements, the melting stretching retains one optical fiber at one end as the input end and the other end as the multi-channel output.

characteristics

1. High reliability: the rack optical splitter adopts advanced production technology and high-quality raw materials, which can ensure long-term stable operation, suitable for all kinds of harsh environments.

2. High stability: the rack spectrometer has low insertion loss and small fluctuation range, which can ensure the signal quality and stability.

3. Low loss: the loss of the rack optical splitter is very low, which can effectively reduce the signal attenuation and distortion, and improve the performance of the communication system.

4. Multi-port output: The rack splitter can output multiple ports simultaneously, which is convenient for multiple users or devices to receive signals at the same time.

5. Easy to install and maintain: The rack separator is simple, easy to install and maintain, and can be easily upgraded and expanded.

6. Suitable for large-scale applications: the rack optical splitter can process multiple input signals simultaneously, suitable for large-scale optical fiber communication system.
